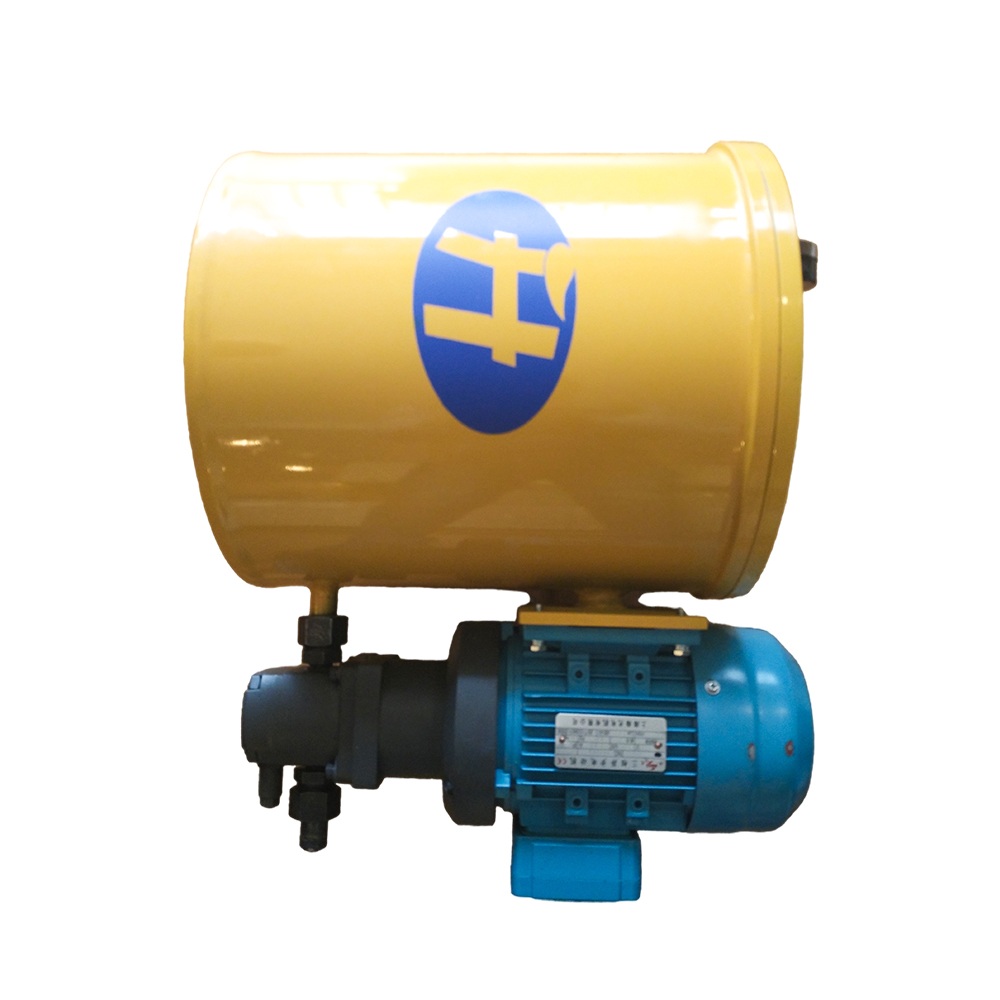

The HN (Haina) Series Bypass Filter can remove 1μm particles and 100% water, significantly extending the service life of equipment and prolonging oil change intervals by 2-10 times. With a relatively small investment, users can achieve considerable economic benefits.
1. Capable of simultaneously removing solid particles and water.
2. High filtration efficiency—contaminated oil can achieve NAS1638 Grade 6 after a single pass.
3. Exceptional dirt holding capacity, 10 to 100 times greater than conventional filtration equipment.
4. Real-time monitoring of oil particulate contaminants and water content changes. (Optional)
| Model | HN-15-25 | HN-27-27 | HN-27-54 |
| Recommended Gear Oil Capacity (L) | 200-350 | 350-600 | 600-1200 |
| Flow Rate (L/min) | 45 | 120 | 240 |
| Power (kW) | 0.18 | 0.15 | 0.15 |
| Dimensions (mm) | 345×240×425 | 520×390×530 | 515×390×780 |
| Power Supply Requirements (Optional) | 3 × 380V | ||
