Selecting the right filter feels like finding a needle in a haystack. With so many options available, how do you know which one will actually protect your machinery and optimize your process? The stakes are high. Choosing poorly leads to equipment downtime, contaminated products, and skyrocketing maintenance costs. This guide dives deep into the world of Filtration Equipment to show you exactly how to make the right choice. We will move past simple definitions and focus on practical, actionable strategies to ensure your systems run at peak performance.
Before looking at a catalog, you must understand what you are trying to clean. Not all liquids or gases behave the same way. The first step in selecting Filtration Equipment involves a rigorous audit of your fluid properties.
Fluid thickness, or viscosity, dictates how much pressure it takes to push it through a filter medium. If you deal with high-viscosity oils, you need a filter housing and element designed to handle increased resistance without collapsing.
| Fluid Type | Typical Viscosity (cSt) | Filtration Challenge |
| Water-based fluids | 1 - 10 | High flow velocity, corrosion risk |
| Hydraulic Oils | 32 - 68 | Particle sensitivity, temperature fluctuations |
| high-viscosity oils | 220 - 460 | High pressure drop, slow flow |
| Gear Lubricants | 460+ | Extreme pressure, heavy contaminant loading |
Temperature changes fluid behavior. Heat thins oil but can also degrade certain filter seals. You must ensure the materials inside your Filtration Equipment—from the O-rings to the mesh—can survive the environment. If the fluid is chemically aggressive, stainless steel or specialized polymers become mandatory to prevent structural failure.
Is your flow steady or pulsating? Pulsating flow, often found in piston pump systems, can "shake" dirt through a filter or cause fatigue in the filter media. We recommend looking for High efficiency units that feature reinforced internal structures to withstand these cyclic pressures.
If you want High filtration accuracy, you have to understand the math behind the labels. Most people look at the "micron rating," but that only tells half the story.
A "Nominal" 10-micron filter might only catch 50% of 10-micron particles. That is not enough for precision systems. You should demand "Absolute" ratings. This means the filter has been tested to capture nearly 100% of particles at that specific size.
The Beta Ratio is the industry gold standard for measuring how well Filtration Equipment performs. It compares the number of particles before the filter to the number after it.
The formula is:
$$\beta_x = \frac{\text{Particles Upstream}}{\text{Particles Downstream}}$$
A Beta Ratio of 2 means it catches 50% of particles ($\text{Efficiency} = 50\%$).
A Beta Ratio of 1000 means it catches 99.9% of particles ($\text{Efficiency} = 99.9\%$).
For critical hydraulic components, we always suggest aiming for a $\beta_x \geq 1000$. This ensures High filtration accuracy and prevents the "silt" buildup that causes premature valve wear.
It isn't just about the biggest rocks; it's about the smallest dust. Use an ISO 4406 particle counter test to see what is actually in your fluid. Once you know your current cleanliness level and your target level, selecting the right Filtration Equipment becomes a data-driven decision rather than a guess.
The "media" is the actual material that does the cleaning. Choosing the wrong media is like using a window screen to stop smoke. You need to match the media to your specific dirt profile.
Cellulose (Paper): These are cheap and okay for basic tasks. However, the fibers are inconsistent in size. They swell when wet and don't offer High filtration accuracy.
Synthetic (Fiberglass): These fibers are much thinner and more uniform. They allow for more "void space," which means the fluid flows easier while the dirt gets trapped. They are essential for achieving High efficiency in modern industrial settings.
Surface filters (like wire mesh) catch dirt on the top layer. They are easy to clean but clog quickly. Depth filters (like pleated synthetic media) trap dirt throughout the entire thickness of the material. This provides High dirt-absorption capacity, meaning you don't have to change the filter every few days.
In some systems, oil degrades into "varnish" or sludge. Standard filters often miss these because they are squishy and slide through the pores. If you face this, look for Filtration Equipment specifically designed with electrostatic or specialized depth media to grab these sub-micron pollutants.
You don't want a filter that cleans perfectly but stops your flow. This balance is the "Clean Pressure Drop" ($\Delta P$).
Every time fluid passes through a filter, it loses energy (pressure). If the $\Delta P$ is too high from the start, your pump has to work harder, consuming more electricity. High-quality Filtration Equipment is designed to have a low initial pressure drop while maintaining High filtration accuracy.
How much "gunk" can the filter hold before it bypasses? This is known as dirt-holding capacity.
Low Capacity: Cheap filters that clog fast. You save money on the part but lose it on labor and downtime.
High Capacity: These units utilize multi-layered pleats. They offer High dirt-absorption, allowing the system to run longer between service intervals.
Most Filtration Equipment includes a bypass valve. If the filter clogs, the valve opens to prevent the housing from bursting. However, when it opens, dirty oil bypasses the filter entirely. You must coordinate your filter’s pressure rating with the bypass setting to ensure you aren't accidentally running unfiltered oil through your expensive machines.
Where you put the filter is just as important as which filter you buy. Different locations in the circuit serve different purposes.
These filters sit right after the pump. They must be rugged because they handle full system pressure. They provide the best protection for sensitive valves and actuators. Because they see high pressure, they are built with heavy-duty housings, making them a core part of any Filtration Equipment strategy.
As the fluid comes back to the tank, it carries dirt picked up from the moving parts. Return line filters are usually larger and less expensive than pressure filters. They are great for maintaining overall system cleanliness over time.

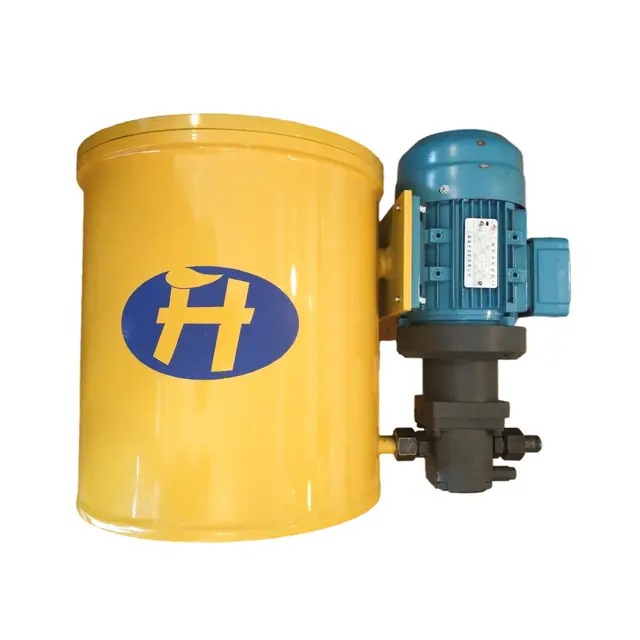

Sometimes, the best way to clean is to do it on the side. A Portable oil filtration unit or a dedicated kidney loop pulls oil from the reservoir, cleans it, and puts it back. This is perfect for high-viscosity oils that might be too thick for the main return lines.
These live inside the tank at the pump inlet. Their only job is to stop "cats and dogs" (large chunks) from hitting the pump. Never use a fine filter here; it will starve the pump of oil and cause cavitation.
The best Filtration Equipment is useless if you don't maintain it. You need a strategy to know when the element is full.
Don't guess. Use "Pop-up" indicators or electrical sensors that trigger an alarm when the pressure differential reaches a certain point. This ensures you get the full value out of the High dirt-absorption capacity without risking a bypass event.
You should install sampling ports before and after your Filtration Equipment. By taking regular fluid samples, you can verify if the filter is actually delivering the High filtration accuracy promised by the manufacturer. If the particle count doesn't drop, something is wrong with the seal or the element.

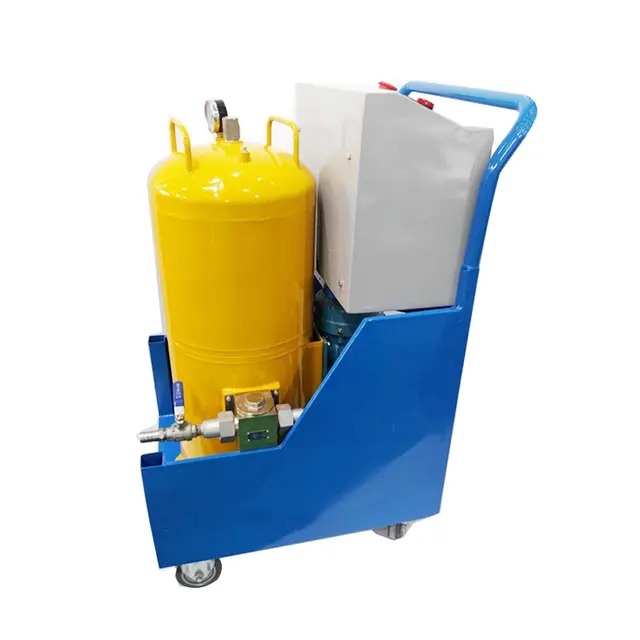

If a system becomes severely contaminated due to a component failure, your fixed filters might be overwhelmed. This is where a Portable oil filter cart comes in. It provides an extra boost of High efficiency cleaning to get the system back to baseline without wasting dozen of expensive on-board filter elements.
The housing is the "suit of armor" for your filter element. If it fails, you have a massive leak and a safety hazard.
For most industrial applications, aluminum or carbon steel is standard. However, for offshore or chemical environments, you need stainless steel Filtration Equipment. This prevents rust from the outside getting into your clean fluid.
Threaded (NPT/SAE): Good for smaller flows and lower pressures.
Flanged: Better for high-flow systems where you need a secure, leak-proof seal that can be easily disassembled for maintenance.
Look for designs that don't require special tools. A "Top-loading" design allows you to change the element without draining the entire housing, saving time and reducing the risk of introducing new dirt during the service.
Selecting the right filter is a balance of science and practical observation. You must weigh the need for High filtration accuracy against the physical realities of your fluid, such as dealing with high-viscosity oils. By focusing on the Beta Ratio, ensuring High dirt-absorption, and choosing the right installation point, you move from "reactive" maintenance to "proactive" reliability.
Good Filtration Equipment is an investment, not an expense. It pays for itself through longer machine life and fewer emergency repairs. Always prioritize High efficiency and quality materials to keep your operations running smoothly.
Q: How often should I change my filter?
A: Never use a calendar. Change it based on the pressure differential ($\Delta P$) or results from fluid analysis.
Q: Can I clean a synthetic filter element?
A: Generally, no. Synthetic media is designed for depth filtration. Trying to wash it usually damages the fibers and destroys its High filtration accuracy.
Q: What happens if I use a filter with too low a micron rating?
A: You will achieve great cleanliness, but the filter will clog very quickly and may cause high pressure drops that damage your pump.
Q: Why is my filter bypassing even when it's new?
A: This often happens with high-viscosity oils in cold weather. The oil is too thick to pass through easily until it warms up. You may need a higher-flow housing or a heater.
