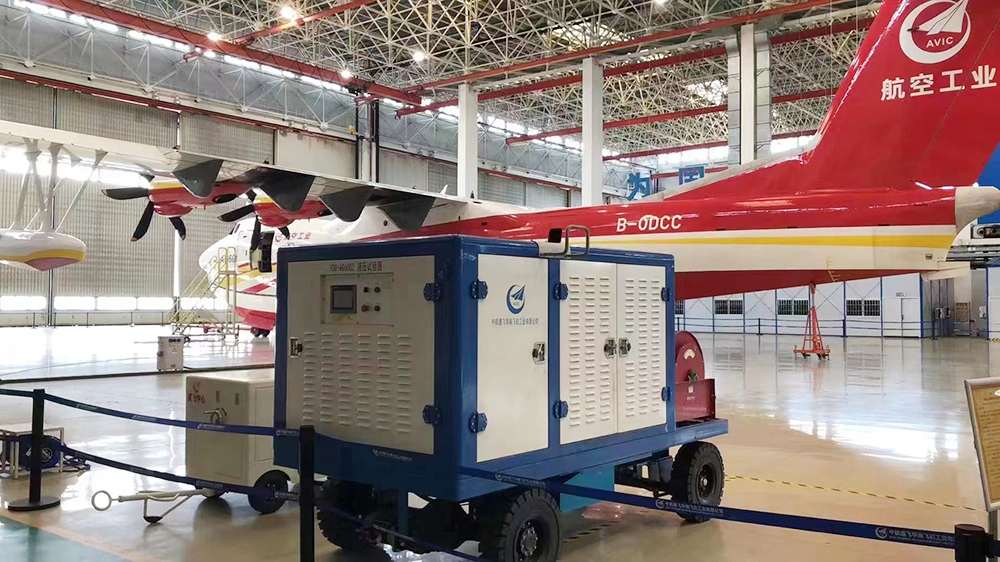

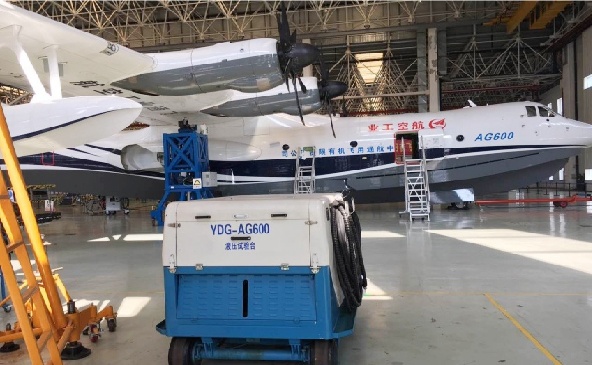

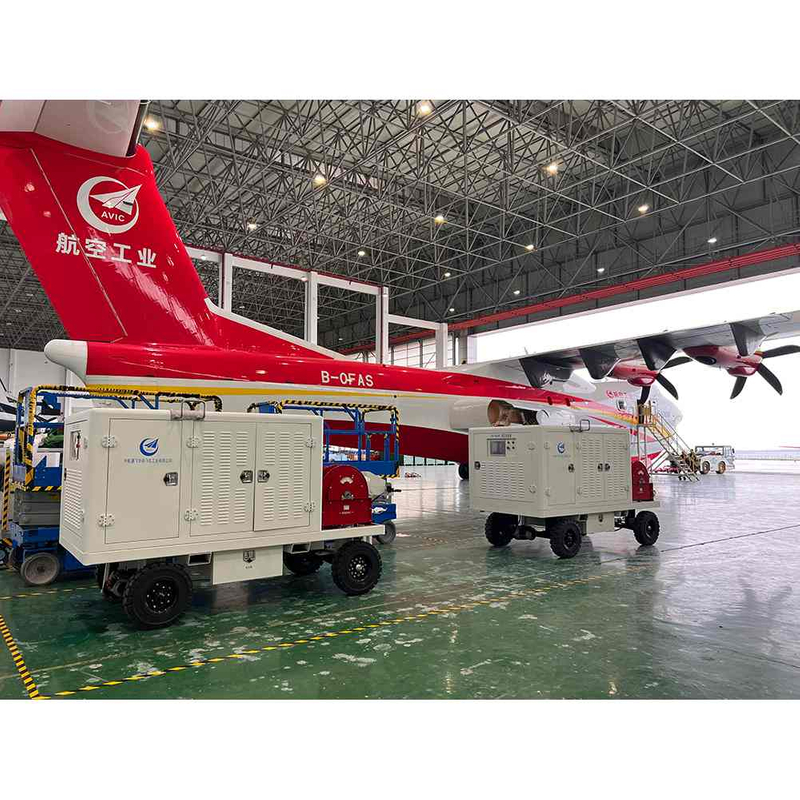

YDG-AG600Z Hydraulic Tester (hereinafter referred to as the "Hydraulic Tester") is primarily used for:
Checking the air tightness of a specific aircraft's hydraulic system.
Debugging and troubleshooting the functions of systems such as the landing gear, various control surfaces, and speed brakes.
Cleaning and purifying the hydraulic system.
Implementing online monitoring of particle contamination levels.
Throughout the entire process, it automatically tracks pressure, flow rate, power, and direction via servo control, ensuring the system consistently operates in an optimally matched state. This Hydraulic Tester is freely mobile and capable of performing the following functions:
To act as a pressure source for the aircraft's hydraulic system and conduct tests on aircraft hydraulic accessories.
To perform operational debugging of various actuators within the aircraft's hydraulic system at set pressures and flow rates.
To implement online detection of the fluid contamination status within the aircraft's hydraulic system.
To conduct rapid and effective cleaning of aircraft hydraulic systems that exceed contamination level standards.
To fill the aircraft with filtered and purified hydraulic fluid meeting qualification standards, and to transfer hydraulic fluid from the aircraft back into the Hydraulic Tester's reservoir.
High Level of Intelligence: Utilizes PLC control and touch-screen LCD displays for integrated operation and control. Features a high degree of automation, making it easy to use and maintain.
Advanced Fluid Contamination Monitoring and Control Technology: Integrates online hydraulic fluid contamination detection and purification with monitoring and control of fluid temperature, pressure, and flow rate. Offers rich self-diagnostic capabilities, improving aircraft support efficiency.
High Reliability: Employs technologies such as new pipeline sealing design, modular design, redundancy design, and derating design. Features a high level of functional component integration, enhancing system reliability and maintainability.
Wide Applicability & Strong Expandability: Hydraulic fluid working flow and pressure are adjustable. Software is expandable and upgradeable. Adaptable to different aircraft models by changing hydraulic connectors and adjusting relevant parameters. Available in self-propelled and trailer-mounted configurations based on user requirements.
Category | Parameter | Specification / Requirement |
General Requirements | Pressure | Adjustable: 0 ~ 21 MPa, Maximum: 31.5 MPa |
Flow Rate | System #1 Max Flow: ≥ 40 L/min | |
Refueling Capacity | Refueling Pressure: ≤ 0.5 MPa, Flow Rate: 0 ~ 10 L/min | |
Power Supply | Input Voltage: 3-Phase, 5-Wire 380V, 50Hz | |
System Temperature | Oil Temperature after Continuous Operation (3 hrs): ≤ 70°C | |
Dimensions (L x W x H) | 3000 mm x 1500 mm x 1700 mm | |
Weight | 2500 kg | |
Supply/Return Hose Length | 15 m | |
Operating Modes | Hydraulic system supports both Closed-loop (ensuring no drop in aircraft tank fluid level) and Open-loop modes. | |
Functions | Two-stage cleaning & purification; Self-circulating cleaning & purification; Aircraft system refueling. | |
Monitoring Function | Online particle contamination monitoring capability. | |
Self-Propelled Speed | ≤ 5 km/h | |
Battery | Battery Model | Lead-Acid Battery, Cell Voltage: 12V 70Ah. Battery Pack Configuration: 6S1P (6 series, 1 parallel), Total: 72V 70Ah |
