Can fluid degrade your system? Yes. Industry data consistently attributes 70% to 80% of premature hydraulic and lubrication system failures directly to fluid contamination. This threat rarely presents as a sudden, catastrophic event. Instead, it causes a progressive degradation of dynamic clearances. It accelerates wear long before outward symptoms appear. You might not notice the damage until a critical pump suddenly seizes mid-production.
Moving from reactive oil changes to proactive fluid management requires immediate action. You must understand the specific mechanisms of wear operating inside your pumps and valves. We also need to establish strict cleanliness targets for our most sensitive systems. Finally, deploying scalable monitoring solutions helps secure long-term reliability. In this guide, you will learn how microscopic particles destroy heavy equipment. We will explore the primary sources of fluid degradation. You will also discover practical, evidence-based strategies to upgrade your fluid handling protocols.
Microscopic threats drive macro-level failures: The most destructive hydraulic oil particles are between 1 and 5 microns—smaller than a red blood cell and invisible to the naked eye.
New oil is not clean oil: Bulk delivery and storage logistics often introduce baseline contamination that exceeds strict OEM hydraulic specifications.
Proactive monitoring is a financial imperative: Transitioning from calendar-based changes to condition-based oil quality monitoring reduces unplanned downtime and extends asset life.
Standardization is required for scalability: Effective contamination control relies on quantifiable metrics like ISO 4406 for particle counts and ASTM standards for chemical analysis.
Understanding exact wear mechanisms is critical. It helps you select the right filtration and maintenance strategies. Without this knowledge, you risk applying generic fixes to highly specific problems. Let us explore how physical degradation occurs inside your systems.
Abrasive Wear (Three-Body Abrasion)
Hard particles bridge the dynamic clearance between two moving surfaces. They cut into the softer metal. This action generates a chain reaction of secondary wear debris. Each new metal shaving becomes another abrasive tool. Over time, these particles gouge deep grooves into critical components.
Erosive Wear
In high-velocity hydraulic systems, fluid-borne particles act like a sandblaster. They strike valve edges at incredibly high speeds. This widens critical tolerances and significantly reduces pump efficiency. Over time, erosive wear compromises precision control and causes internal leakage.
Surface Fatigue
Particles get trapped in rolling contacts. Bearings and gear pitch lines often suffer from this issue. These trapped contaminants create localized stress points. Eventually, they lead to micro-cracking and severe material spalling. Such hidden degradation frequently culminates in sudden equipment failure if left unchecked.
Cavitation and Aeration
Air and moisture trapped in fluids cause massive damage. These bubbles implode under high pressure within pumps. The violent implosions strip metal surfaces and severely compromise fluid film integrity. This process sounds like gravel rattling inside your pump.
We must classify machinery oil contamination to fight it effectively. Different pollutants require distinct filtration and prevention tactics. You cannot treat water ingress the same way you treat dirt.
Particulate Contamination: This includes dust, dirt, and internal wear debris. Maintenance teams measure it via ISO 4406 standard codes. These codes quantify particle counts across three distinct micron levels (4, 6, and 14 microns).
Moisture Ingress: Water exists in dissolved, emulsified, and free states. It destroys additive packages and reduces load-carrying capacity. Moisture also accelerates metal corrosion rapidly.
Chemical and Thermal Degradation: Cross-contamination from incompatible fluids causes massive issues. Extreme heat also causes severe hydrocarbon breakdown. This results in sticky varnish and thick sludge. These byproducts frequently seize sensitive servo valves.
Supply Chain Infiltration: You might assume new fluid is pristine. It rarely is. Built-in contamination from manufacturing processes is common. Dirty transfer hoses and unsealed storage tanks add more debris. Improperly handled dispensing equipment acts as a final injection point for dirt.
Here is a detailed breakdown of these contaminant categories:
Contaminant Category | Primary Sources | Visible Symptoms | Primary Impact on Equipment |
|---|---|---|---|
Particulates | Ambient dust, wear debris, dirty hoses | Darkened fluid, blocked filters | Abrasive scoring, widened clearances |
Moisture | Condensation, washdowns, seal leaks | Milky or cloudy fluid appearance | Rust, additive depletion, reduced viscosity |
Chemical / Thermal | High operating heat, mixed lubricants | Sticky amber residue, thick sludge | Sticking valves, poor heat dissipation |
Built-in / Supply | New oil drums, manufacturing debris | None (requires lab or sensor testing) | Premature wear upon system startup |
Shift your evaluation from basic maintenance overhead to comprehensive risk management and long-term asset profitability. Reactive maintenance burns through operational capital quickly. A run-to-failure strategy costs significantly more than investing in fluid health.
Unplanned Downtime
Halted production carries an exponential cost. You lose output, pay idle operators, and miss delivery deadlines. Compare this to the highly predictable, low cost of routine fluid monitoring. Proactive strategies always win the financial argument when evaluating production uptime.
Component Replacement Frequency
Extending fluid life directly extends component life. Cleaner fluid correlates strongly with extended pump, bearing, and servo valve lifespans. You buy fewer replacement parts over the year. You also spend less time rebuilding intricate assemblies.
Energy Inefficiency
Degraded fluid forces equipment to work much harder. High particle counts alter internal friction coefficients. Compromised viscosity disrupts smooth mechanical movement. This subtly increases power consumption across large-scale operations. Over a year, this invisible energy drain costs industrial plants thousands of dollars.
Consider the following cost comparison chart to understand the financial shift:
Cost Factor | Reactive Strategy Impact | Proactive Strategy Impact |
|---|---|---|
Labor | High overtime for emergency weekend repairs. | Scheduled, predictable shifts. |
Parts | Frequent expedited shipping for major components. | Extended component lifecycles. |
Energy | High draw due to friction and viscosity loss. | Optimized baseline power consumption. |
Fluid Spend | Frequent massive bulk fluid dumping. | Targeted top-offs and extended drain intervals. |
You need a solid evaluation framework to choose the right strategy. Scale your oil quality monitoring program without creating data silos. Avoid administrative bloat by focusing only on actionable metrics.
Establishing Baseline Targets
First, establish strict baseline targets. Define maximum allowable ISO 4406 cleanliness codes. Base these targets on the most sensitive component in a given system. A high-pressure proportional valve requires much cleaner fluid than a standard gearbox. If you do not set a target, you cannot measure success.

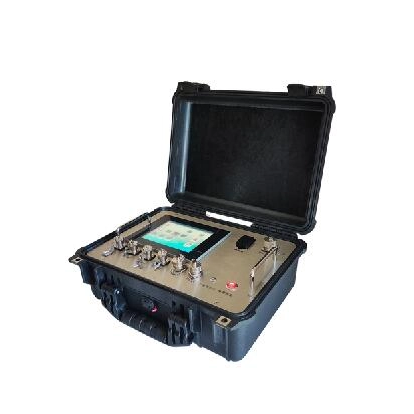

Lab Analysis vs. Inline Sensors
Next, weigh routine lab analysis against modern inline sensors. They serve different but complementary purposes.
Routine Lab Sampling: Offers incredible diagnostic accuracy. Methods like Karl Fischer titration measure dissolved water perfectly. ASTM wear metal analysis reveals exact alloy degradation. However, these results are inherently delayed. You often receive data days after the damage occurs.
Inline Sensor Technology: Provides immediate visibility. It tracks moisture, dielectric changes, and dangerous hydraulic oil particles in real time. This is best for critical assets. Early warning prevents catastrophic failure before it begins.
Implementation Realities & Risks
Consider implementation realities carefully. Common mistakes include inconsistent sampling locations and using dirty sampling valves. If you pull a sample from a low-flow drain port, you collect accumulated sludge, not a representative sample. Furthermore, failing to tie sensor data to an automated CMMS workflow renders the data useless. Alerts must trigger immediate maintenance actions.
Always flush the sample valve before taking the official draw.
Sample from a live, turbulent zone while the machine operates under normal load.
Use dedicated, ultra-clean sample bottles.
You must take practical, evidence-based physical actions. Eliminate oil contamination before it ever enters the equipment. Do not rely solely on your system's internal filters to do all the heavy lifting.
Securing the Perimeter
Start by replacing standard OEM breather caps. Use high-quality desiccant breathers instead. Standard caps simply let dirty ambient air flow freely into the reservoir as fluid levels fluctuate. Desiccant breathers strip moisture and particulates from incoming air. They form your critical first line of defense against atmospheric ingress.
Pre-filtering Protocols
Never assume new fluid is ready for service. Mandate strict kidney-loop filtration during any fluid transfer. Use dedicated filter carts when moving fluid from bulk storage to machinery. This simple step removes massive amounts of built-in manufacturing debris. It ensures only ultra-clean fluid enters your expensive hydraulic loops.
Targeted Dehydration
Evaluate vacuum dehydration units (VDUs) for severe cases. Centrifugal separators also work exceptionally well for systems highly susceptible to chronic water ingress. Marine, paper milling, and heavy mining applications often require these aggressive dehydration tools. VDUs excel at boiling off dissolved moisture without damaging the base fluid chemistry.
Using galvanized containers for storage, which causes zinc to leach into the additives.
Leaving drums stored vertically outdoors, allowing water to pool and get sucked past the bungs.
Using a single filter cart for different fluid types, causing severe chemical cross-contamination.
Fluid degradation is not an inevitable cost of doing business. It remains a highly measurable and completely controllable variable. Shifting your mindset from reactive component replacement to proactive fluid management transforms operational efficiency. You hold the power to extend machine lifespans significantly.
Take these immediate actions to protect your critical assets:
Audit your current fluid storage and transfer practices this week to identify open ingress points.
Define precise ISO target cleanliness levels based on OEM specifications for your most sensitive operational assets.
Pilot inline sensor technology on high-risk equipment to capture baseline data and validate the business case.
Install desiccant breathers on all critical reservoirs to stop airborne moisture and dirt immediately.
A: Most damaging hydraulic particles fall between 1 and 5 microns. They remain entirely invisible to the naked eye. By the time fluid appears milky from water or dark from thermal degradation, irreversible wear has already occurred inside your equipment. Visual checks are too late.
A: No. Virgin oil from a drum or bulk delivery typically has an ISO cleanliness code much higher than the strict tolerances required by modern high-pressure systems. You must always pre-filter new fluid through dedicated filter carts before introducing it into your machinery.
A: Frequency depends heavily on equipment criticality and the operating environment. High-risk assets often require continuous inline monitoring for maximum safety. Meanwhile, secondary or redundant systems may rely on monthly or quarterly standardized laboratory sampling. Always let asset criticality dictate your testing schedule.
