KLD-B adopts the principle of laser blockage method (laser shading method) to detect the size and number of solid particles in the oil. Based on the measurement, it does the analysis and displays the oil contamination class in different standards (e.g NAS1638, ISO4406) so as to help the operator be aware of the potential risks and avoid any evitable wear of parts. It can be widely applied to various kinds of oil, such hydraulic oil, lubricating oil, gearbox oil, insulating oil (transformer oil), etc.
1.High accuracy. Adopting the principle of laser blockage method (laser shading method) which is the most efficient method to count the number of particles in liquid. Equipped with high-quality Germany-made sensor, which ensures the precision of counting.
2.Two ways of measurement. Both on-line and lab sampling measurement are available.
3.Able to display the measurement result in the form of NAS1638, ISO4406, GJB by means of both digits and diagrams.
4.Big touch screen. Easy for operation and efficient for display.
5.Built-in PC. No need connecting the instrument to another computer, operator could look up the data by various standards such as location, time, operator name, etc. Data also can be transferred via USB connection.
6.Printer internally installed. Able to print out the measurement result within 45 sec.
7.Lithium battery installed. Suitable for outdoor use. 8.Internal peristaltic pump. Flow controlled
9.Almost infinite data storage volume. 8G hard disk.

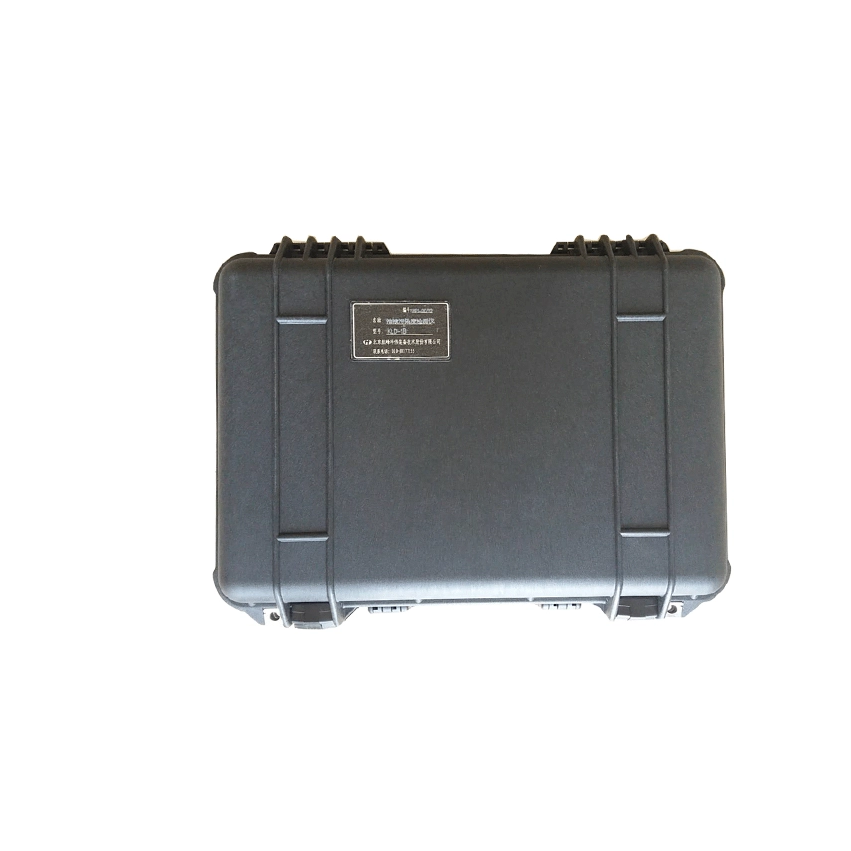

10.Suitcase design. Compact and rugged. Easy to take along.
Weight | 10KG |
Dimension | 415mm * 319mm * 168mm |
Fluid Temperature Range | -20-80 °c |
Operating Ambient Temperature | -20-60 °c |
Relative Humidity | 20-85%, non-condensing |
Viscosity Range | 10-300 cst |
Range of Detectable Particle Diameter | 1-200µm (1000µm is optional) |
Channels | 6 NAS 1638:2,5,15,25, 50, 100 µm ISO:4406: 4,6,14,21, 38,70 µm |
Light Source | Laser Diode |
Accuracy | +/- half an ISO/NAS code |
Typical Test Time | 45 secs |
Computer Interface | RS 232 communication port |
Contamination Class | NAS1638 00-21 ISO4406 01-29 |
Sample Volume | 250ml |
Online Operating Flow Rate | 50-100 ml/min |
Online Operating Pressure | Low Pressure: 0.3-3Mpa(3-30bar) High Pressure: 3-20MPa(30-200bar) |
Calibration | Based on ISO MTD (ISO11171:2000) |
Hose Adapter | M16*2 standard adapter |
Data Storage Volume | 8G hard disk |
Power Supply | AC 220V±10% or as required Rechargeable battery |

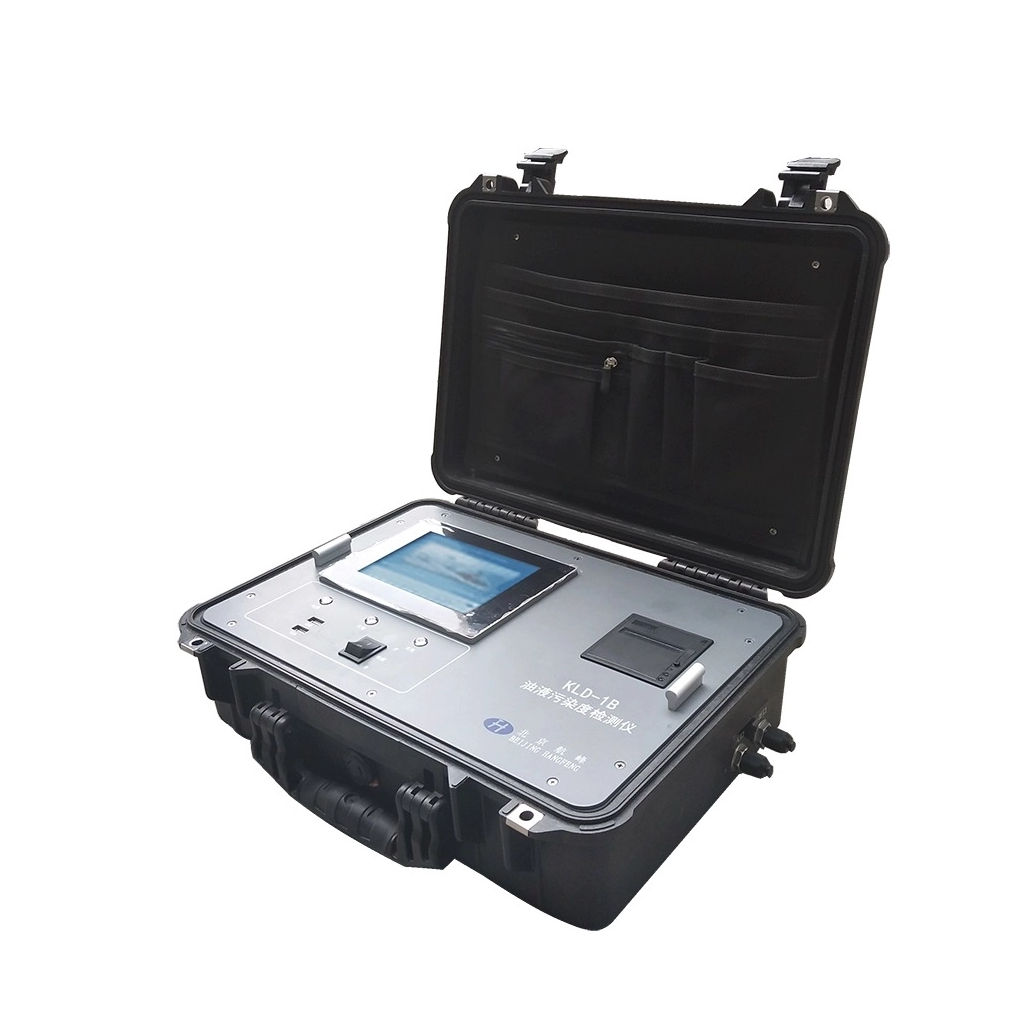

KLD-B Series Portable Oil Particle Counter
