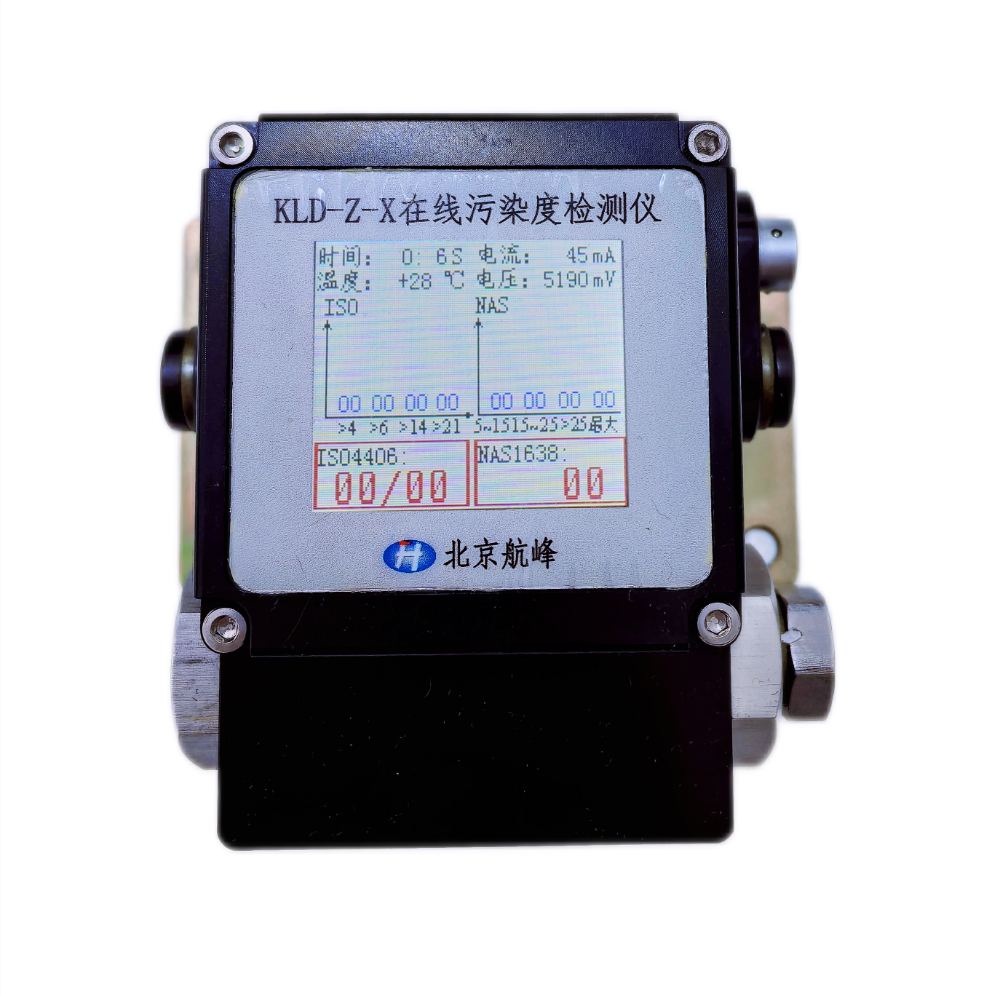

The KLD-Z-X Online Oil Particle Monitor is an intelligent, lightweight, and efficient analytical instrument. It enables real-time monitoring of oil contamination in hydraulic and lubrication systems, allowing maintenance personnel to intervene early to prevent wear or damage to system components caused by pollutants. This not only minimizes repair costs but also reduces equipment downtime, enhances system safety, and extends service life.
Equipped with laser sensors for high-precision detection.
Compact and lightweight design for easy installation, removal, and retrofitting.
Rapid detection: delivers results in 6 seconds.
Minimal oil flow impact, ensuring uninterrupted hydraulic system operation.
Simultaneously displays ISO/NAS grades in color (optional).
Includes serial cable and software CD for data transfer to PCs or displays.
Robust firmware for enhanced durability.
Supports online printing and alarm functions (optional accessories).
Flow Range | 50–300 mL/min | Weight | 538g (with display) |
Power Supply | DC 12V–24V (ripple <30mVp-p) | Dimensions | 94×87×46mm |
Operating Temperature | -20℃ to 60℃ | Channels | 4 or 6 channels (adaptive to standard settings) |
Media Temperature | -20℃ to 80℃ | Pressure Range | 3–30MPa (high pressure) |
Humidity | Operates at 20%–85% RH (non-condensing); | Communication | RS485/RS232 |
Repeatability | ±0.5 ISO level | Thread Specification | M10×1mm |
