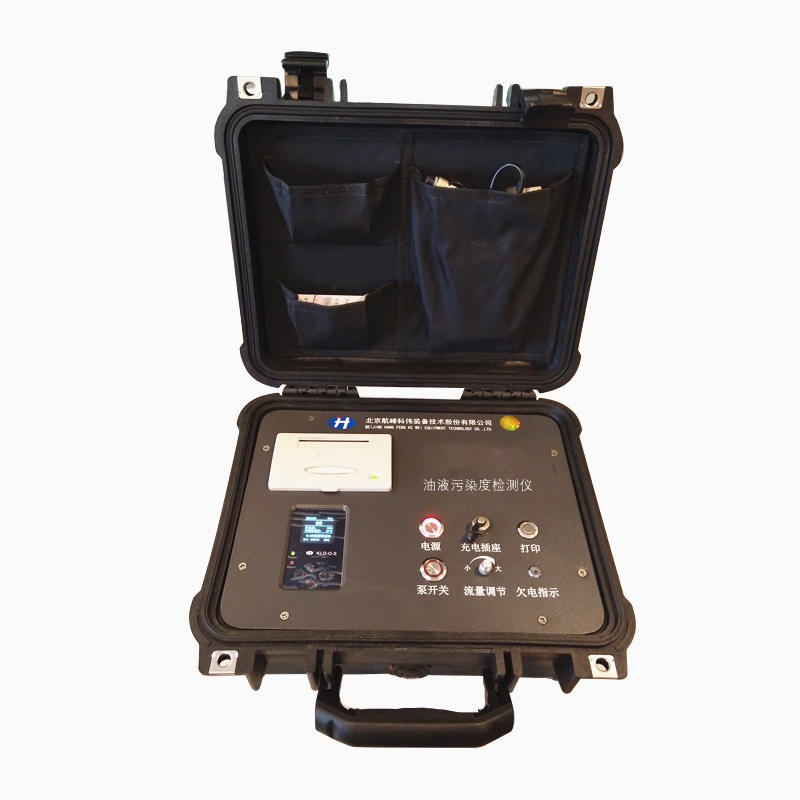

KLD-5 laser portable oil particle and water detector analyzes oil solid particle’s size, quantity, distribution and water contamination. The machines friction, wear, leakage and normal aging process lead to solid particle or water that cause errors in critical components or subsystem of machinery. The oil could be hydraulic oil, lubricating oil, gearbox oil, insulating oil (transformer oil), etc.
KLD-5 is used for predictive maintenance, in order to monitor and analyze the condition of operating oil or fluid, and to detect a variation from oil normal condition early on. So Operators can tell when to maintain machines with lowest cost according to its analysis. It helps operators ensure critical components to be fully utilised, eliminate unplanned downtime and reduce the total cost throughout machines’ service life.
KLD-5 integrates functions of oil particle counter, water detector and temperature meter, LCD screen to display oil contamination condition, mini printer, lithium battery, pump for sample test, compact instrument case that cannot break when heavy truck passing over. It supports sample test and online test.
1.Small size, light weight, easy to carry and operate.
2.High accuracy. Adopting the principle of laser blockage method which is the most efficient method to count particles in fluid.
3.Analyzing oil like hydraulic oil, lubricating oil, transformer oil, insulating oil, turbine oil, turbine oil, gear oil, engine oil, aviation kerosene oil, etc.
4.Measurement standards: NAS1638, ISO4406, GJB 420B.
5.Instrument case made by Pelican from the US, cannot break when heavy truck passing over.
| Weight | 4KG |
| Dimension | 339mm * 295mm * 152mm |
| Viscosity Range | 0 - 350 cst |
| Particle Size Passages | 5μm，15μm，25μm，50μm，100μm; and 4μm(c)，6μm(c)，14μm(c)，21μm(c)，38μm(c)，70μm(c) |
| Measurement Standard | ISO 4406 0 ～24 NAS 1638 00 ～12 GJB 420B 00 ～12 |
| Sensitivity | 1μm(ISO4402)，4μm(c)(ISO11171) |
| Repeatability Accuracy | ± 0.5 ISO Level |
| Oil Temperature | 0℃～55℃ (24 hour)，< 85℃ (10 min) |
| Storage Temperature | -20℃～60℃ |
| Environment Temperature | -15～40℃ |
| Humidity | 20～85% RH without condensation， Store humidity < 90% RH without condensation |
| Working Pressure | <10bar |
| Working Flow | 60～110 ml/min |
| Electricity source | AC 220V±10% & rechargeable storage battery |
| Working Time | ≥30min |
| Charging Time | ≤4H |
| Protect Level | IP67 (Case closed) |
