KLD-BA
hangfeng
| Availability: | |
|---|---|
| Quantity: | |
KLD-BA Series Portable Fluid Contamination Detector utilizes laser light blockage technology and a precision spherical pump to deliver high-accuracy particle detection. It supports both online and sampling modes, featuring an Android smart system and touchscreen with bilingual (Chinese/English) interface. The device integrates ten global standards (ISO, NAS, GJB, etc.) for real-time contamination trend graphing and oil grade assessment. Equipped with a built-in micro printer, rechargeable battery, and storage for over 4,000 data records, it also enables USB data transfer. Compact and lightweight, it offers an efficient, flexible, and reliable oil monitoring solution for both field and laboratory use.
KLD-BA Series Portable Fluid Particle Counter (Portable Fluid Contamination Detector) — A Precision, Intelligent, and All-Scenario Detection Expert.
The KLD-BA series is a portable particle counter that integrates high precision and advanced intelligence, specifically designed for on-site and laboratory fluid contamination detection. Its core features are as follows:
Cutting-Edge Detection Technology: Utilizes a laser sensor and light blockage principle to ensure accurate and reliable data; equipped with a precision spherical pump for constant sampling speed and precise volume control.
Rapid Detection: Delivers test results in as fast as 30 seconds, enabling quick on-site analysis and timely decision-making.
Flexible Dual-Mode Operation: Supports both online and sampling measurement modes, easily adapting to demanding industrial environments as well as controlled laboratory settings.

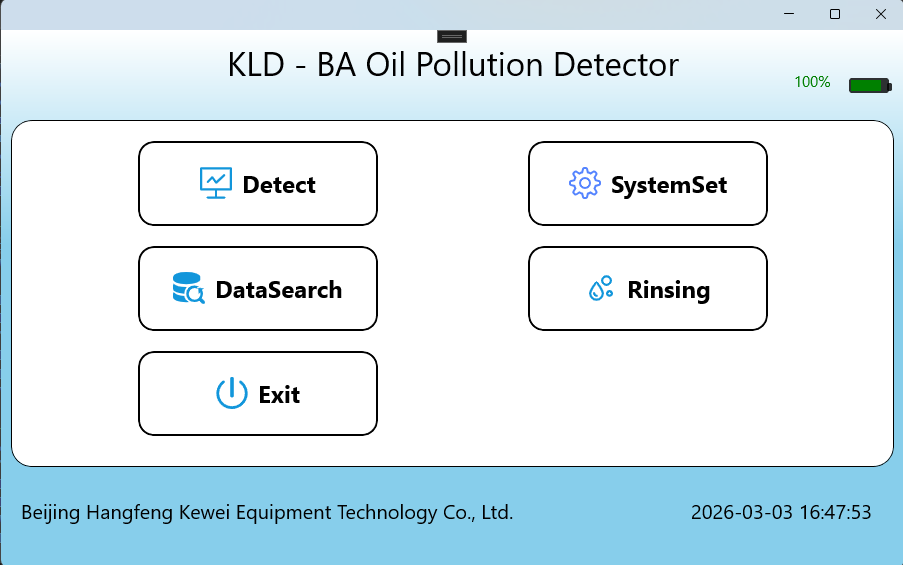

Intelligent Operating System: Powered by the Android operating system and a large touchscreen LCD, complemented by a numeric keypad for intuitive and convenient operation. Built-in language switch between Chinese and English meets the needs of global users.

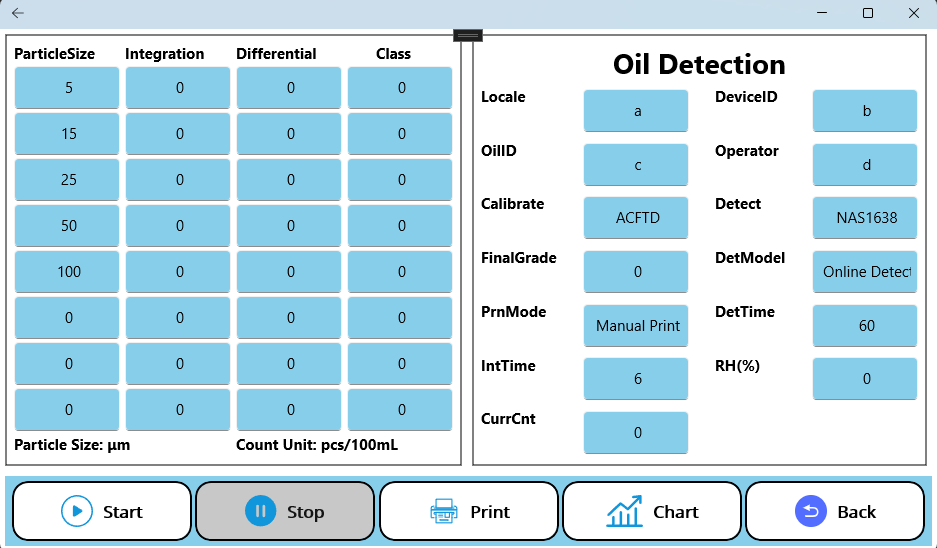

Comprehensive Data Processing: Offers ten built-in detection standards (e.g., ISO 4406, NAS 1638, GJB, etc.) for direct assessment of fluid contamination levels, with real-time trend graphing of particle counts and contamination classes. Stores over 4,000 records and supports USB data transfer and system upgrades for efficient data management and analysis.

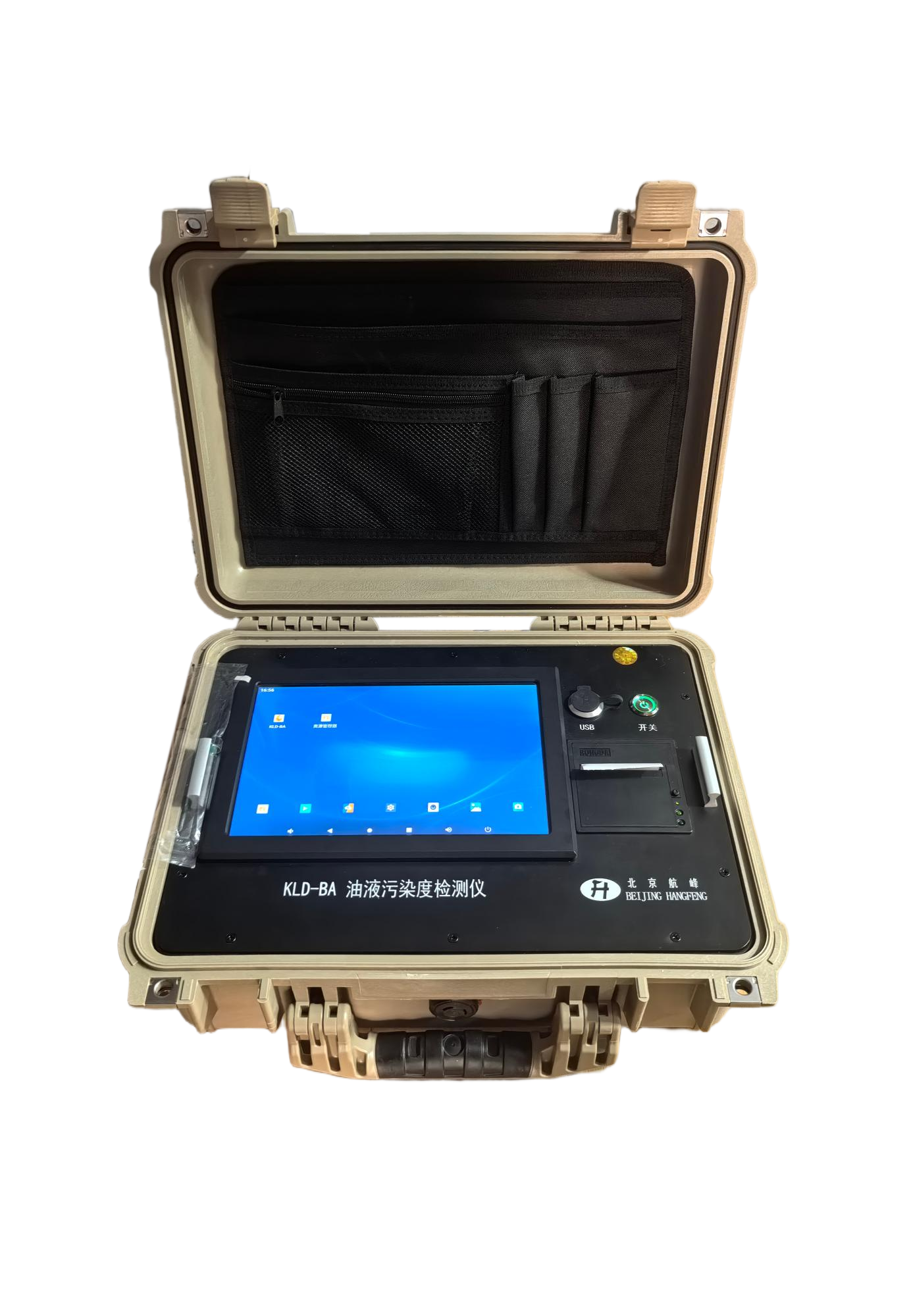

Integrated Portable Design: Features a built-in micro printer for instant result printouts and a rechargeable battery ideal for extended fieldwork. Compact, lightweight, and highly portable.
With its high precision, rapid detection, intelligent functionality, and versatility, the KLD-BA series provides an efficient and reliable on-site solution for equipment lubrication management and fluid monitoring.
| Parameter Name | Parameter Value |
| Dimensions | 43cm × 35cm × 19cm (L × W × H) |
| Sensor | Core sensor |
| Number of Channels | 8 channels, adjustable |
| Viscosity Range | 0–400 cst |
| Particle Size Range | 1–400 μm |
| Maximum Particle Concentration | 24,000 particles/mL |
| Sensor Flow Rate | 10 mL/min (factory default), adjustable |
| Rinse Flow Rate | 30 mL/min (factory default), adjustable |
| Measurement Range | 4–70 μm (c) per ISO 11171 |
| 1–100 μm per ISO 4402 | |
| Sensitivity | 4 μm (c) per ISO 11171 |
| 1 μm per ISO 4402 | |
| Resolution | ≥90% |
| Coincidence Error | ≤5% |
| Repeatability | ≤3% |
| Accuracy | ±10% |
| Ambient Temperature Range | –40°C to 70°C |
| Medium Temperature Range | 0°C to 80°C |
| Detection Standards | Multiple standards available per user requirements (including IP565, ISO4406, NAS1638, GJB420A, GJB420B-2006, GJB420B-2015, SAE AS4059E, SAE749D, SAEAS4059E, GOST 17216) |
| Data Output | 32-column thermal printer |
| Display | Particle size, particle count, cleanliness level, etc. |
| Power Supply | AC 220V ±10% and rechargeable battery |
| Calibration Interval | 1 year |
