Viscosity is a critical indicator for evaluating the performance of lubricating oils. The kinematic viscosity of oil is an essential basis for determining the lubrication status of equipment and deciding whether an oil change is required. During use, lubricating oils may experience viscosity reduction due to contamination, degradation, and other factors. If the viscosity change exceeds the allowable range for equipment lubrication, it can lead to poor lubrication and abnormal wear. Therefore, monitoring the kinematic viscosity of oil is crucial in routine oil analysis.

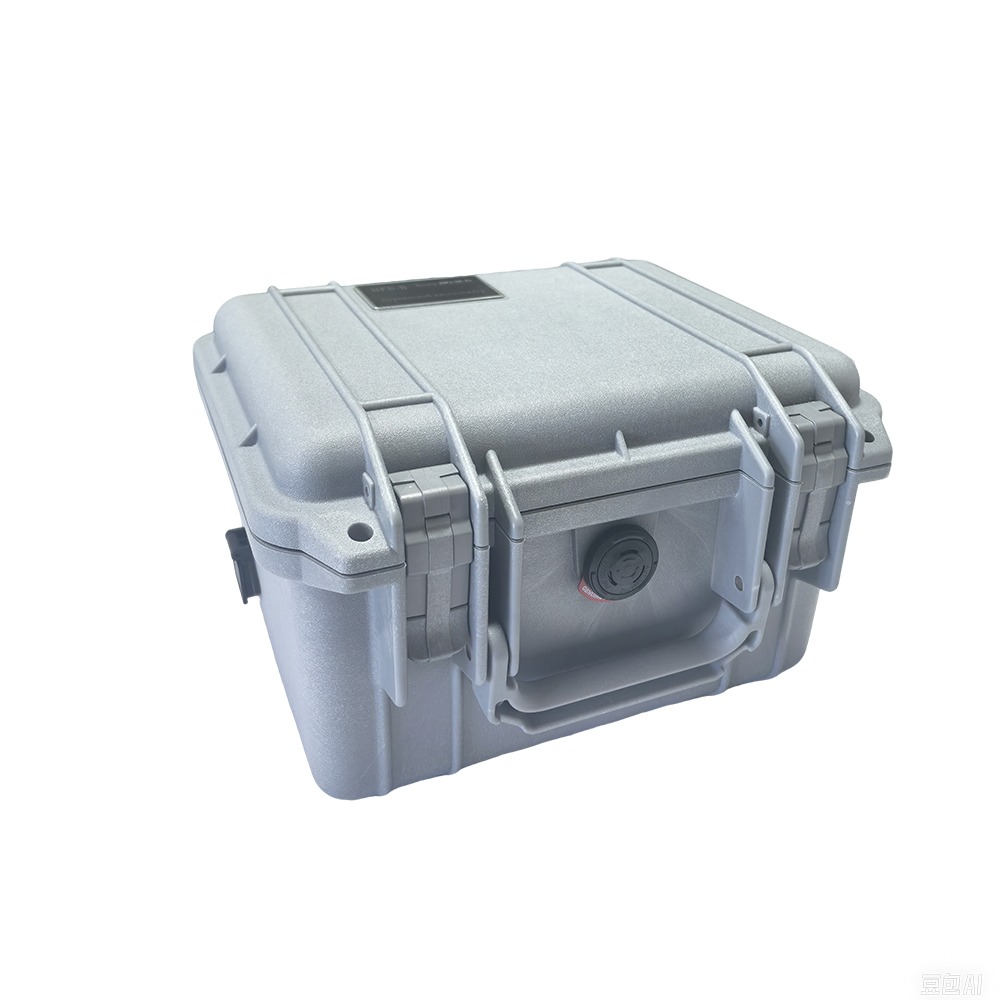

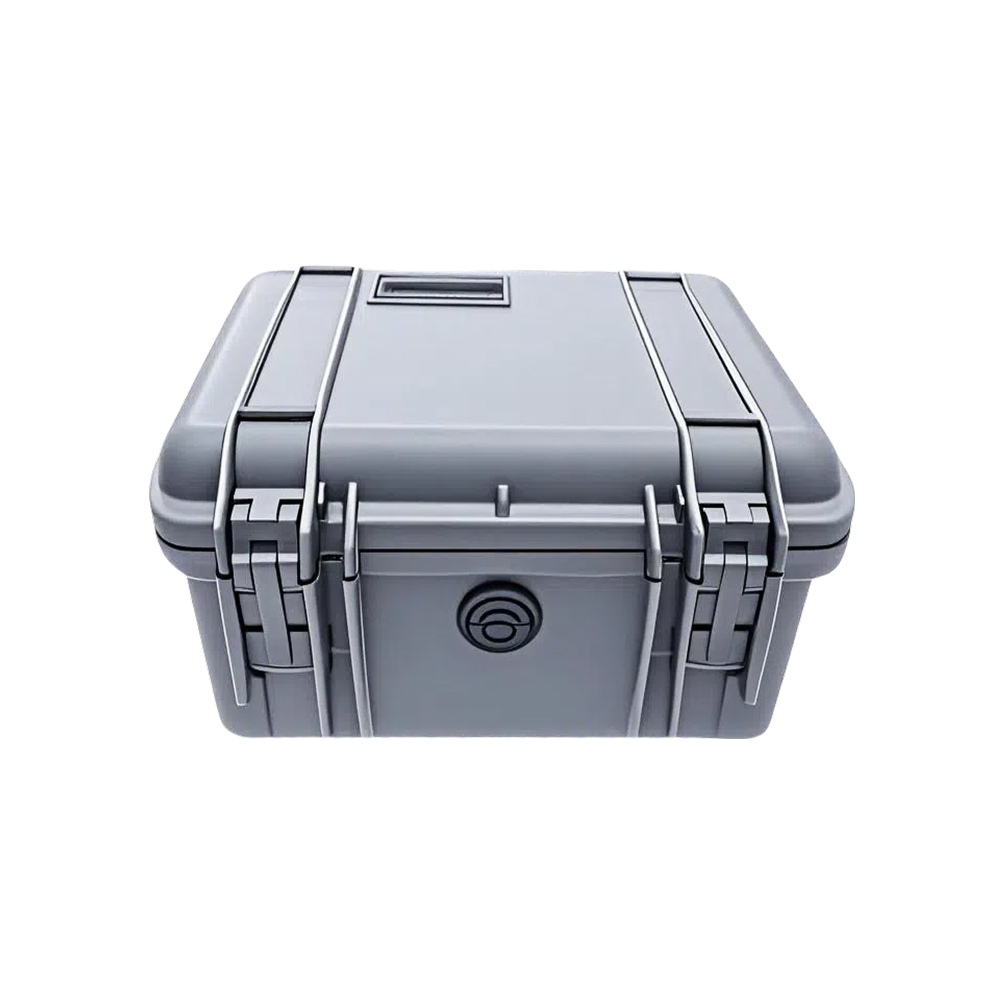

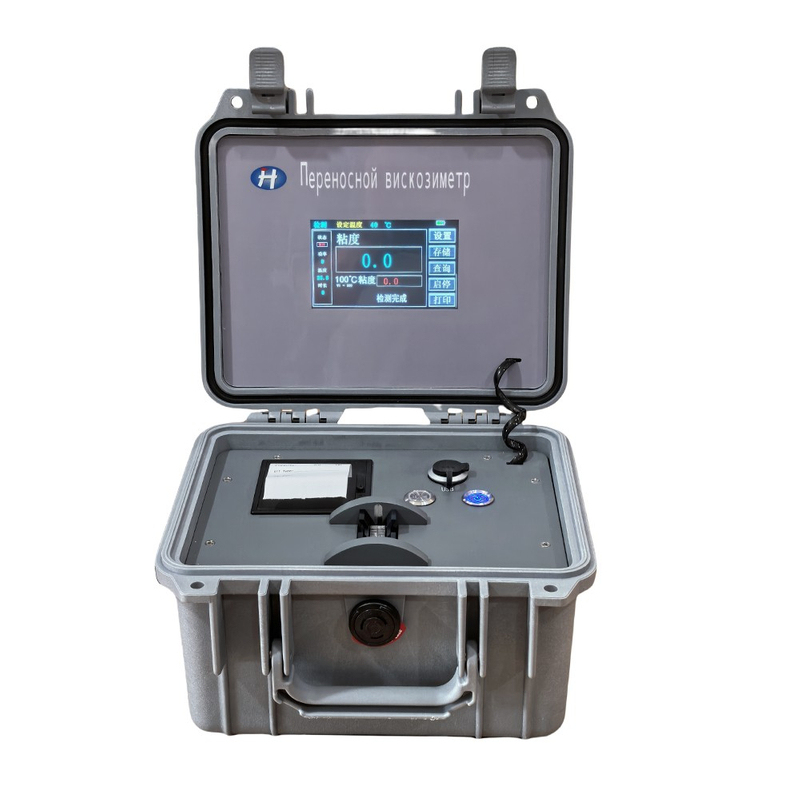

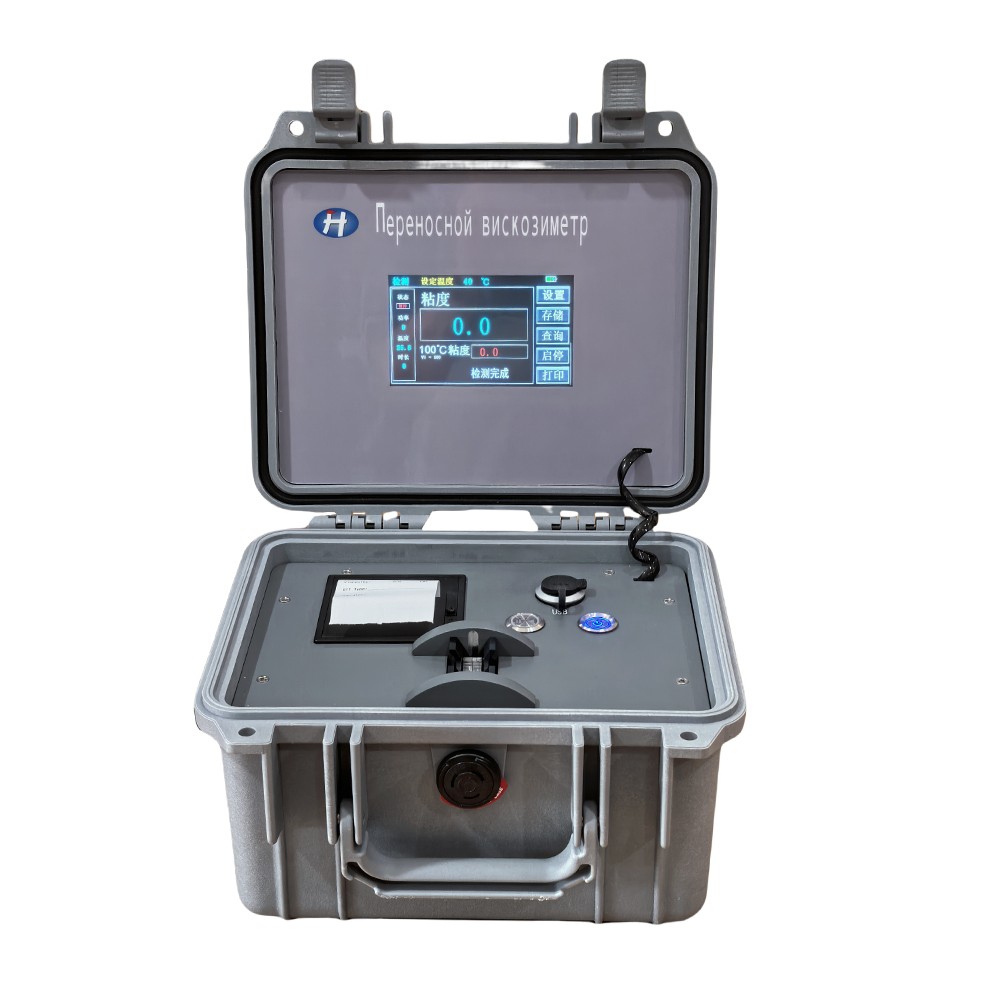

The HFN-B Portable Viscometer measures the kinematic viscosity of oil at 40°C using the capillary method, enabling users to quickly and accurately assess changes in oil viscosity. This helps improve equipment reliability and avoid losses caused by unplanned downtime. The instrument allows users to customize the viscosity index and automatically calculates the kinematic viscosity at 100°C based on the viscosity index and the measured viscosity at 40°C. Equipped with multi-point calibration, the HFN-B ensures high detection accuracy.
Capillary Method: Capable of testing almost any type of oil.
Open-and-Close Design: Prevents capillary tube clogging.
Multi-Point Calibration: Uses standard oils to calibrate over a specific viscosity range, improving detection accuracy.
High Precision: Delivers measurement accuracy comparable to laboratory-grade equipment.
Solvent-Free Cleaning: No solvents required; simply wipe with absorbent paper for eco-friendly operation.
Minimal Sample Volume: Only 2-3 drops of oil are needed for testing, using a disposable pipette.
User-Friendly Operation: Features a touchscreen interface for easy operation without complex procedures.
Compact and Lightweight: Weighs approximately 4.2 kg, making it highly portable.
Long Battery Life: Built-in lithium battery provides over 8 hours of continuous operation.
Parameter | Specification |
Measurement Method | Capillary Method (ASTM D445) |
Measurement Range | Covers common oil viscosity ranges |
Measurement Temperature | 40°C (±0.1°C) |
Measurement Accuracy | ≤5% of measured value |
Repeatability | ≤3% of measured value |
Sample Volume | 1-2 drops (approx. 0.05 mL) |
Data Output | Thermal printer, touchscreen display |
Power Supply | AC220V / Built-in lithium battery (18.5V, 4.4AH) |
Battery Life | >8 hours |
Charging Time | 2.5 hours |
Dimensions | 27×24.6×17.4 cm |
Weight | Approx. 4.2 kg |
Protection Rating | IP65 (dustproof and waterproof) |
Operating Temperature | 0~40°C |
Humidity | 10~80%, non-condensing |
System Language | Chinese, English |
Industrial Equipment Maintenance: Monitor lubrication status of gearboxes, hydraulic systems, engines, and other critical equipment.
Oil Quality Control: Quickly identify degraded oils and optimize oil change intervals to reduce maintenance costs.
On-Site Diagnostics: Ideal for outdoor or mobile applications such as mining, wind power, and marine industries, minimizing the need for lab testing.
The HFN-B Portable Viscometer enables users to detect lubrication issues early, extend equipment lifespan, and avoid unplanned downtime. Its portability, intelligent design, and eco-friendly features redefine efficiency and convenience in industrial oil monitoring, making it an essential tool for equipment health management.
