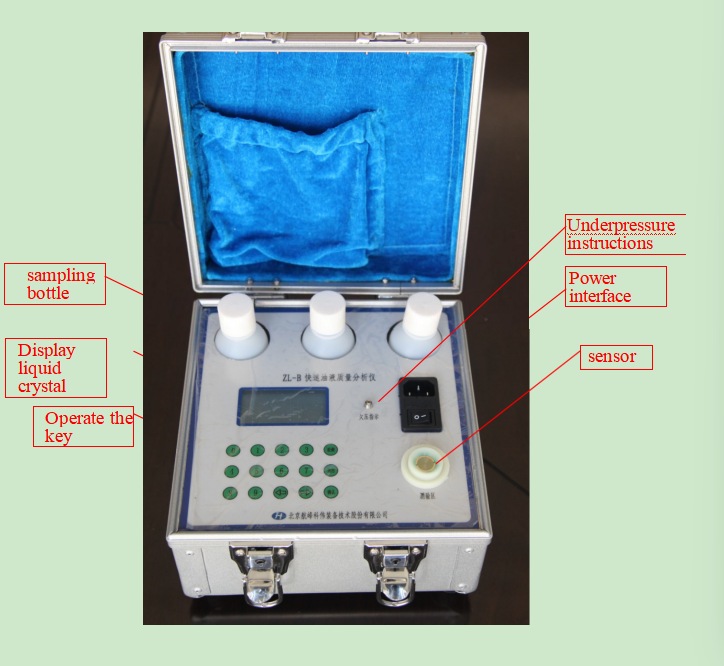

The ZL-B Oil Quality Rapid Analyzer is a rapid oil quality detection instrument that measures the aging degree of in-service oil based on changes in the comprehensive dielectric constant. This instrument not only provides a simple and fast oil quality testing method for industries such as petrochemicals, automotive, construction machinery, and internal combustion engine lubrication and hydraulic systems but also monitors equipment operating conditions through regular oil testing to prevent accidents.
Capable of detecting the comprehensive contamination level of lubricating oil, water content in oil, metal debris larger than 65μm, and the impact of light oil on lubricating oil.
Automatically categorizes oil quality into three grades: scrap, usable, or good.
Equipped with self-checking and misoperation monitoring functions.
Features automatic "zero-point" error correction.
Supports both AC and DC power supply.
Repeatability Error | ≤3% | Weight | ≤5 kg |
Power Consumption | ≤300mW (battery can operate continuously for 6 hours) | Power Supply | AC: 220V/50Hz |
Dimensions (L×W×H) | 225×225×140mm | Main Test Items | Comprehensive contamination level, water content, |
