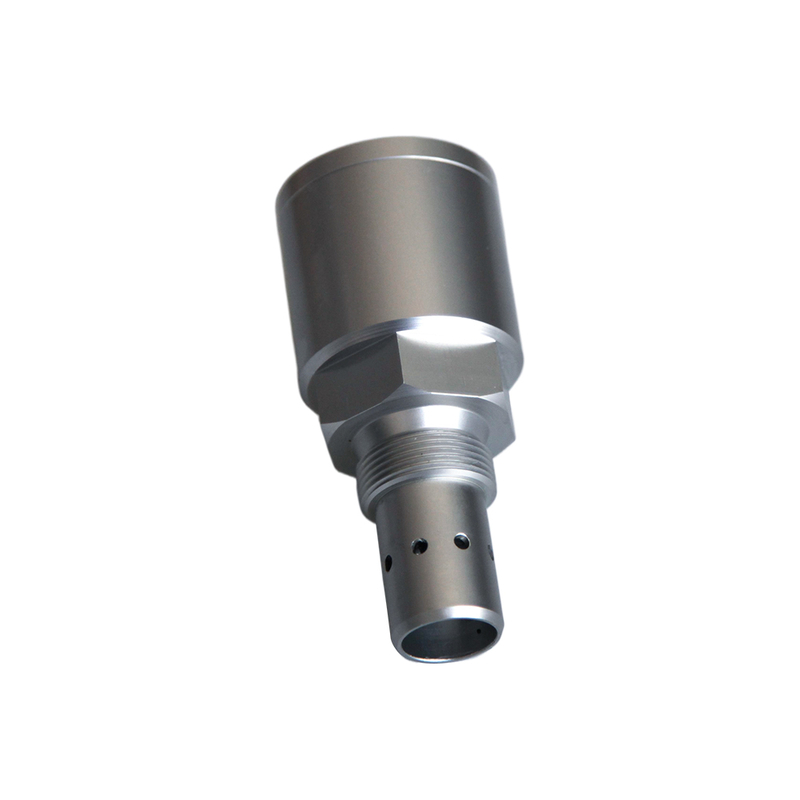

The ZL-Z Oil Moisture Sensor is an online temperature and humidity sensor independently developed by our company for continuously monitoring changes in the quality of hydraulic or lubricating oil.
1.Capable of real-time online detection of temperature and humidity changes in oil.
2. Provides accurate, stable, and reliable measurement results.
3. Offers two data output methods: serial output or analog 4-20 mA /RS485 output.
4. No moving parts or consumable components, ensuring a long service life.
5.Customized tubing connections are available.
Basic Info | Max Operating Pressure | 10 | Bar |
Oil Temperature | -20 …100 | ℃ | |
Data Output | 4…20mA,RS232/485,CAN/CANopen | ||
Protection Class | IP67 | ||
Power Supply | Voltage | 9…33 | V |
Current | ＜0.2max | A | |
Environment | Storage Temperature | -20 …+80 | ℃ |
Humidity | 0…95% | % r.H | |
Connection | Threaded Connection | G3/4（Custom tubing connections） | |
Electric Connection | M12X1,8 connector | ||
Range of Measurement | Relative Permittivity | 1…7 | - |
Relative Humidity | 0…100 | % | |
| Conductivity | 0…45000 | PS/M | |
Temperature | -20 …120 | ℃ | |
Resolution | Relative Permittivity | 1*10-4 | - |
Relative Humidity | 0,1 | % r.H | |
Conductivity | 1 | PS/M | |
Temperature | 0,1 | K | |
Accuracy | Relative Permittivity | ±0.015 | - |
Relative Humidity | ±3 | % r.H | |
Conductivity | Typ. ＜10 | % | |
Temperature | ±1 | K |
