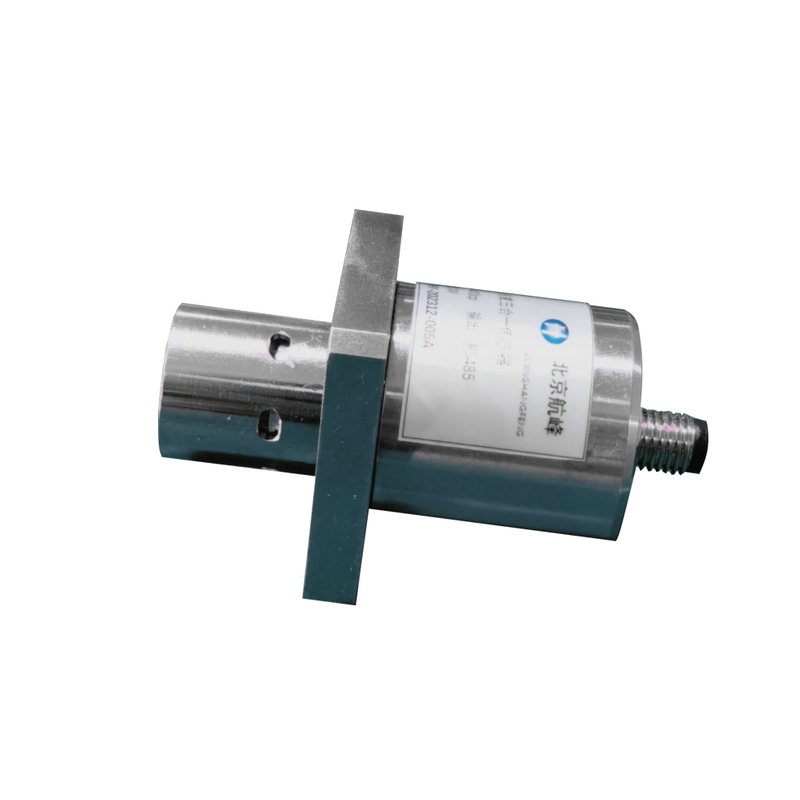

Viscosity multi-parameter oil Sensor

multi-parameter oil sensor adopts patented multi-function integrated detection technology, combined with FOS model data and industry leading The back-end data processing module constitutes a large range, high precision, multi-functional oil comprehensive detection sensor, which greatly reduces the on-line Oil monitoring field installation repeated holes and installation controls and other industry problems, is the industry's large range, multi-parameter representative products . The viscosity and density indicators of the sensor adopt the industry's advanced precision resonance mechanism, and the dynamic viscosity detection can reach 1000CP; Inner set The resulting oil quality (dielectric constant), water content, temperature detection structure, can be completed at one time dynamic viscosity, density, dielectric constant Number, moisture content, temperature detection, processing chip equipped with internal model data optional: real-time kinematic viscosity, 40℃ kinematic viscosity 100℃ kinematic viscosity, viscosity index, conductivity and other detection indicators, truly achieve multi-functional, small volume and large integration of comprehensive response Multifunctional on-line monitoring oil sensor.

Intelligent, Robust, Precise

● Imported probe for high-precision measurement
● Three parameters in one: Viscosity, Density, Dielectric Constant, and Temperature
● Density accuracy up to ±5 kg·m⁻³
● Viscosity range 1~1000 cP with accuracy up to 5%
● Rapid response, with data refreshed every second
● Measurement unaffected by external vibrations
● Full stainless steel construction, ideal for robust online monitoring requirements
● Excellent chemical corrosion resistance and high-pressure tolerance
● No moving parts, no consumables, 10-year lifespan
● Multiple certifications and test reports
● Compact design for seamless system integration
● Integrated module for convenient on-site calibration

Application Fields:

·Fuel storage and transportation

·Refining and petroleum industries

·Power generation industries (wind power, thermal power, etc.)

·Transportation sectors (aviation, maritime, railway, etc.)

·Offshore engineering (e.g., drilling platforms)

·Large-scale engineering machinery and equipment

·Transportation vehicles

·Seawater treatment and testing equipment

·Oil processing equipment and filtration systems

·Chemical laboratory analysis

·Production process quality control

·Coatings, inks, and printing industries

·Medical equipment

Applicable Fluids:
Lubricating oil, hydraulic oil, gearbox oil, gasoline, diesel, aviation fuel, kerosene, biodiesel, ethanol, chemical reagents, coatings/inks, food-grade oils, laboratory analysis fluids.

Measured Parameters:
Viscosity, Density, Dielectric Constant, Temperature

Customization Supported: Yes
